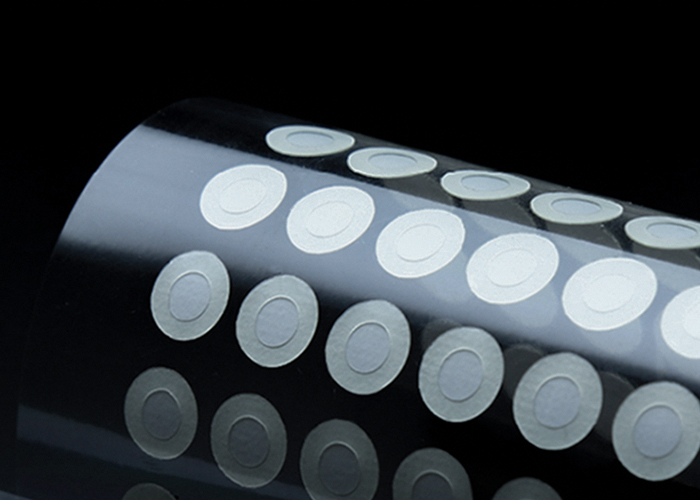

Adhesive Vent

Including small size, simple installation, and large air permeability, IPRO adhesive pressure vent has become the front runner of many vehicle motor producers. Product specs are as follows:

Technical Data

    • WEP: 20-400kPa (60s)
    • Typical Air Flow: 50-10000ml/min/cm2@7kPa
    • IP Rating: IP67/IP68
    • Oil Rating: Up to 8
    • Operating Temperature: -40℃-+160℃
get enquiry

Contact to IPRO

Welcome to contact IPRO to get more information about products and services. Simply send us a message through our contact form and the responsible contact person will get in touch with you as soon as possible.

IPRO may contact me to inform me of products, programs, services, and promotions. I understand that I can opt out at any time.
For additional information related to our privacy practices, review our Privacy Policy

Product Application : Adhesive Vent


In order to match pressure triggered by temperature adjustments in the electric motors, air flow openings are needed in the sensible application for electric motors such as the window motor as well as wiper motor, which remain in direct contact with the outside atmosphere, in addition to the beginning electric motor as well as cooling electric motor in the engine area, which is exposed to long hrs of severe temperature level modifications.


Airflow openings compromise electric motors’ protection capacity to a particular level. It is crucial to have venting products that not only have a high IP ranking but can also adjust stress. The air venting items applied to motors will satisfy the following requirements:


  1. Large air permeability per unit area;
  2. High IP rating;
  3. Small footprint;
  4. Easy installation;
  5. Long service life.


IPRO adhesive protective vents have exceptional residential or commercial properties such as huge air leaks in the structure, high IP rating, long heat resistance, and strong versatility to the exterior working conditions with extreme temperature level modifications. After testing, IPRO adhesive ePTFE membrane can maintain excellent performance after 1000 hrs of high-temperature storage space.

Key Features
  • Easy installation;
  • Large air permeability;
  • High IP rating;
  • Small footprint
