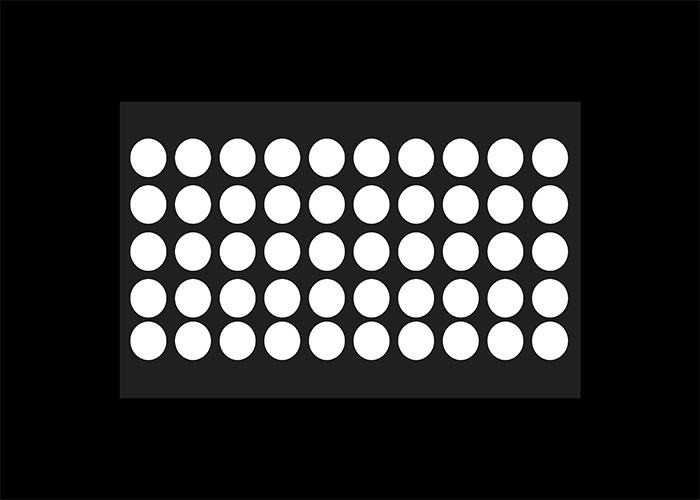

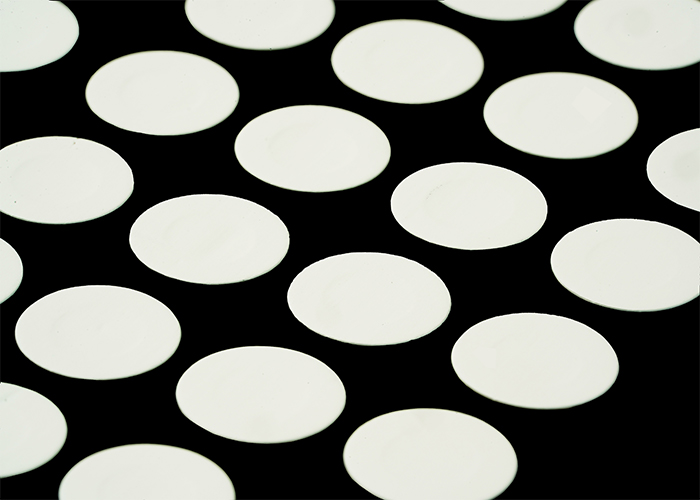

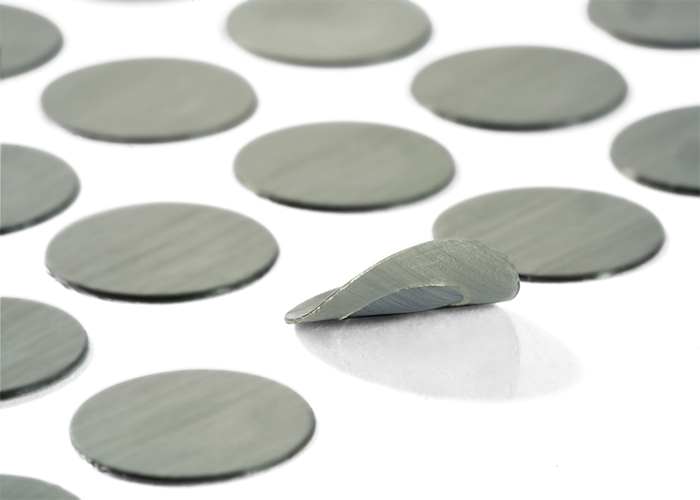

Adhesive vents are made of membranes combined with double-sided adhesives. It is light, thin, easy to adapt and install, especially suitable for narrow spaces, thin casing, and automatic assembly.

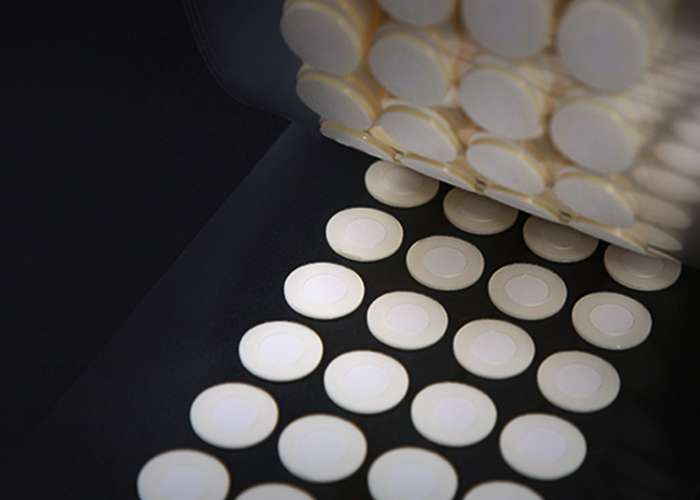

Adhesive vents are generally sold in rolls. Both standard sizes and customized types, shapes, and sizes are available. Both adhesives and packaging forms are customizable for different chemicals.
Product Technical Specifications:
Product | Typical Membrane A | Typical Membrane B | Typical Membrane C | Typical Membrane D |
IP Rating | IP67, IP68 | IP67, IP68 | IP67, IP68 | IP67, IP68 |
Reference Thickness | 0.32mm | 0.33mm | 0.24mm | 0.24mm |
Adhesive Type | Acrylic | Acrylic | Acrylic | Acrylic |
Membrane Type | ePTFE | ePTFE | ePTFE | ePTFE |
Membrane Characteristics | Oleophobic | Oleophobic | Oleophobic | Hydrophobic |
Membrane Color | White | White | White | White |
Support Material | Polyolefin | Polyolefin | Polyolefin | Polyolefin |
Part Orientation | Internal mount | Internal mount | Internal mount | Internal mount |
Adhesive Temperature Range | -40° to 120° | -40° to 120° | -40° to 120° | -40° to 120° |
