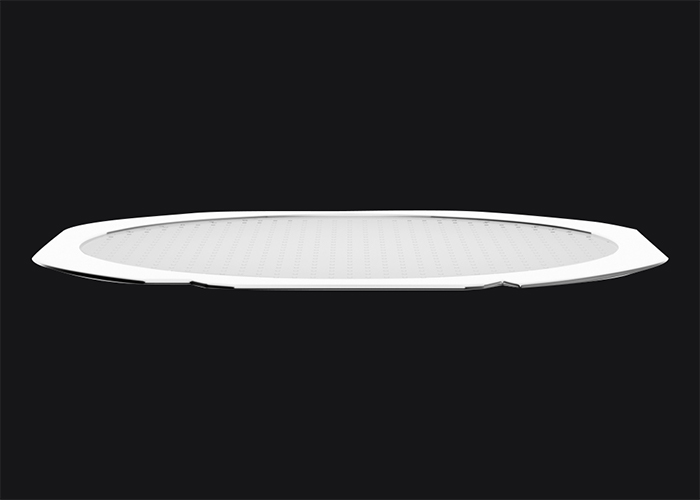

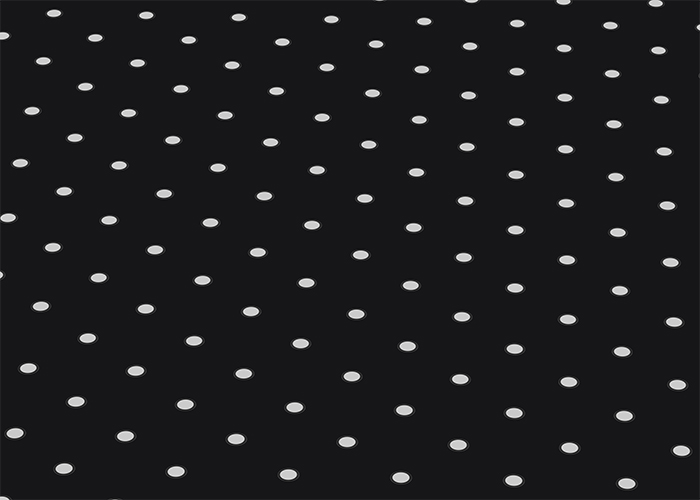

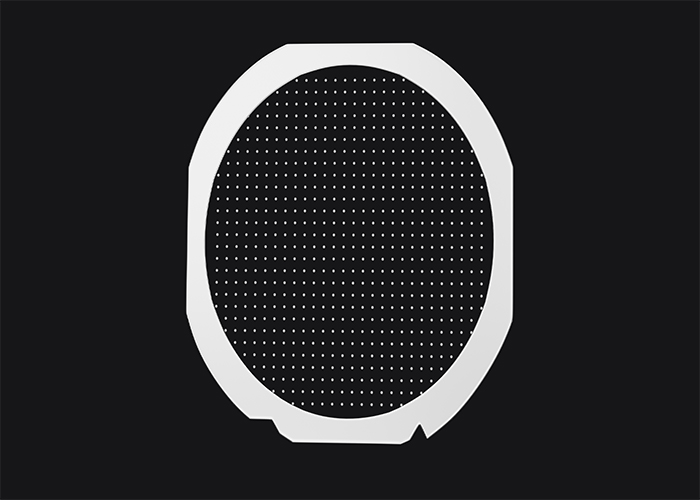

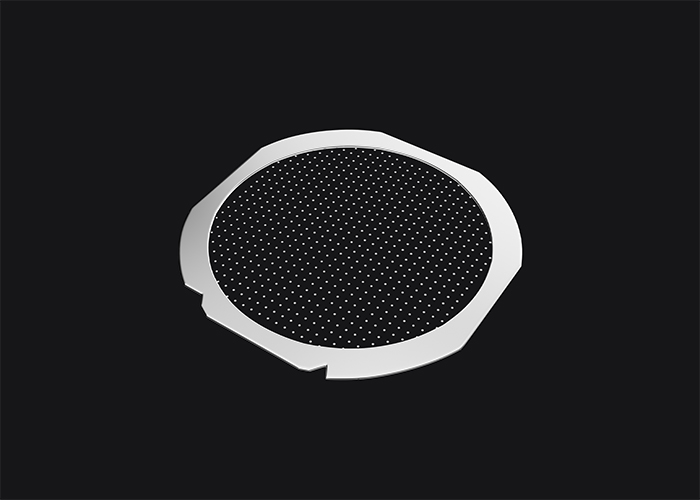

MEMS Pressure Vent

The miniaturization of electronic products has increased the demand for MEMS sensors, and how to make it waterproof has become a key issue for manufacturers.

Technical Data

    • Material: ePTFE
    • Typical Air Flow: 2000-25000ml/min/cm²@ 7kPa
    • IP Rating: IP65/IP66/IP67/IP68
    • Installation Method: adhesive bonding and welding
    • Operation Temperature: -40-+280℃
get enquiry

Contact to IPRO

Welcome to contact IPRO to get more information about products and services. Simply send us a message through our contact form and the responsible contact person will get in touch with you as soon as possible.






IPRO may contact me to inform me of products, programs, services, and promotions. I understand that I can opt out at any time.
For additional information related to our privacy practices, review our Privacy Policy

Product Application : MEMS Pressure Vent

Introduction

MEMS sensors are usually exposed to harsh conditions, such as rain, dust, gases, and chemical liquids. On the one hand, MEMS sensor chips need to collect accurate measurement data through direct contact with external environment as much as possible. On the other hand, the chips should avoid erosion by rain, dust, or other pollutants to maintain good working condition.



The effective air permeability of IPRO MEMS pressure vent can reach up to 2000-25000ml/min/cm², which not only blocks the erosion of pollutants, but also ensures the normal operation of MEMS sensors.



In addition, the heat resistant ePTFE membrane can be used for reflow soldering, both in SMT process and surface mounting.

Key Features
  • Natural drainage and dust-proof, with waterproof and dust-proof grades of IP65, IP66, IP67 and IP68;
  • Multiple models available with typical air flow from 2000-25000ml to meet different needs;
  • Provide products specifically for chemical liquid protection according to different use scenarios;
  • Operation Temperature: -40℃-+280℃.
